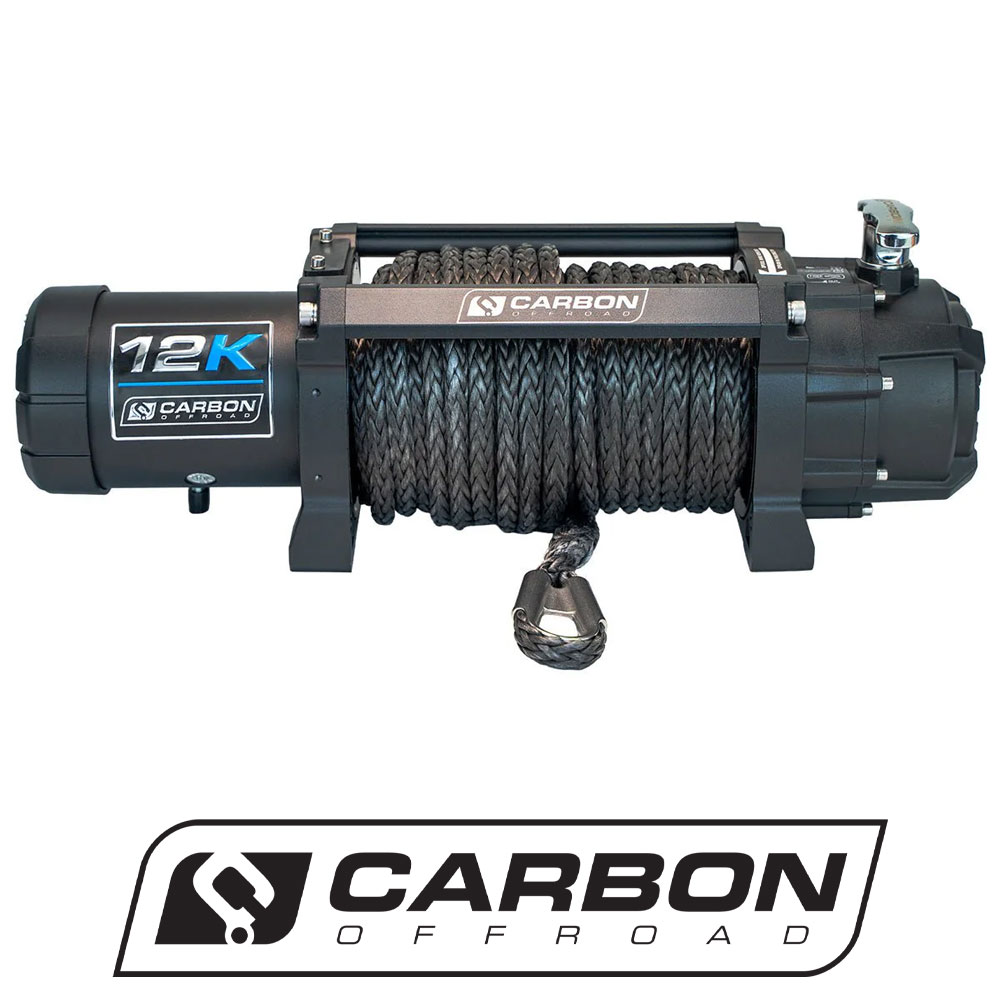

Carbon 12K – 12000lb Winch V3X – BYO Hook

Description

PRODUCT: Carbon 12K – 12000lb Winch V3X – BYO Hook
BRAND: Carbon Offroad
PART NUMBER: CW-12KV3X-NYOH

⚠️ Please Note: This listing is for the winch only.
No hook or soft shackle is included in this package. The winch comes with the winch accessory kit only – perfect if you already have a hook.

Carbon 12K Winch – Lightweight 19.7 kg, high-performance 12,000 lb winch with 6 HP motor, triple planetary gearbox, and IP68 waterproofing. Built for tough Australian off-road conditions, backed by a lifetime geartrain and 5-year electrical/water ingress warranty.

Conquer tough tracks with this 12,000lb heavy-duty winch, built by an Australian off-road company for the harshest conditions. Durable, powerful, and reliable — it’s your ultimate recovery essential.

• 12,000lb pulling power – perfect for serious 4WD recovery
• IP68 sealed – resists water, dirt & dust
• 6HP series wound motor– strong, consistent performance
• Triple planetary gears (218:1) – fast, smooth recovery
• Made for Aussie terrain – from mud to steep climbs

Engineered for Lasting Performance

Every component of this system is engineered for longevity. Zinc electroplated internals and planetary gears resist corrosion, while the motor features high-performance brushes with copper-impregnated contacts and plated mounts for reliable electrical efficiency. A balanced motor armature and ball bearing operation ensure quiet, dependable performance under load, and a triple-layer breather system protects against pressure fluctuations and moisture during heat cycles. The rotating ring gear clutch provides smooth, low-drag free-spooling, while the hoist-style braking system delivers mechanical braking through the gear train—preventing heat buildup at the drum and keeping synthetic ropes safe from damage.

TECHNICAL FEATURES

• Part number: CW-12KV3X
• Rated line pull: 12000 lbs, (5450 kg) single-line
• Motor: 12V DC 6HP series wound motor (24V option available)
• Remote Control: Remote Switch, 12ft (3.7m) lead.
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary.
• Gear Ratio: 218:1
• Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
• Brake: Full load automatic brake installed in the motor housing end plate.
• Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
• Limited Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty
• Synthetic Rope: 24m x 10mm diameter
• Drum Diameter/Length: 63mm x 224mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2″ x 6.2″ x 7.4″)
• Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8″ x 7.9″ x 8.7″)
• Winch weight with synthetic rope attached: VERSION 3X – 19.7kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.65kg

Installation is flexible and straightforward.

The Carbon 12K comes with everything you need. The Multi-Fit fairlead suits most bullbars and allows for a 20mm rope outlet offset. The control box bracket offers four mounting options — over the motor, over the drum, on top plates, or in front of the winch; 500mm cables let you mount the control box remotely when needed.

KIT CONTENTS

• 1 x Carbon 12K winch
• 1 x 24m x 10mm high strength synthetic winch rope
• 1 x Carbon winch hook (not applicable for BYO Hook version)
• 1 x 600A solenoid box (includes all battery cables, wireless remote receiver, and multi-fit mount)
• 1 x Long black battery cable
• 1 x Wireless remote
• 1 x Wired remote
• 1 x Multifit CNC Alloy fairlead (supports both offset and standard mounting positions)

HARDWARE & ACCESSORIES

• 4 x Mounting bolts
• 3 x Allen keys
• 2 x Longer mounting bolts (for fairlead mounting)
• 2 x Nuts for remote mounting the solenoid box
• 1 x Hook hand saver strap
• 1 x Carbon lanyard
• 1 x Carbon stubby cooler
• 1 x Installation manual
